New 2024 Grand Design Imagine XLS 17MKE

Travel Trailer

Stock #24H2349

Port Alberni

1 of 26

+26

Buyers Market Pricing: $59,690
List Price: $68,534
Save: $8,844

Payments From: $483 /mo.

Sleeps 3
1 Slides
U Shaped Dinette

Murphy Bed

22ft Long
4,892 lbs
HEARTHSTONE

See All Specs

Specifications

Sleeps	3	Slides	1
Length	21 ft 11 in	Ext Width	8 ft
Ext Height	10 ft 10 in	Int Height	6 ft 6 in
Interior Color	HEARTHSTONE	Hitch Weight	480 lbs
GVWR	6395 lbs	Dry Weight	4892 lbs
Fresh Water Capacity	43 gals	Grey Water Capacity	45 gals
Black Water Capacity	37 gals	Tire Size	ST205/75R14LRD
Furnace BTU	25000 btu	Available Beds	Murphy Queen
Refrigerator Type	12V	Refrigerator Size	10 cu ft
Cooktop Burners	3	Shower Size	27" x 36"
Number of Awnings	1	LP Tank Capacity	20 lbs
Water Heater Type	On Demand Tankless	AC BTU	15000 btu
TV Info	LR LED HDTV	Awning Info	14' Electric w/LED Light
Axle Count	2	Number of LP Tanks	2
Shower Type	Walk-In Shower	Electrical Service	30 amp
VIN	573TE2229R3439839

Description

Grand Design Imagine XLS travel trailer 17MKE highlights:

Queen Murphy Bed
U-Shaped Dinette
Large Panoramic Window
Unobstructed Pass-Through
12V 10 Cu. Ft. Refrigerator

The Murphy bed is the eye-catching feature on this Imagine XLS travel trailer! Not only can it fold away in the morning to reveal a sofa for lounging, but it will also provide you with drawer storage under the sofa. Another functional feature is the U-Shaped dinette. It rests on the single slide so that there is more floor space, and it offers you great comfort while you dine across from the LED HDTV. A full bathroom will keep you clean and fresh with its residential walk-in shower, skylight, linen closet, vanity, toilet, and power vent fan.

Let your imagination run wild with the possibilities that the Grand Design Imagine XLS travel trailer can provide! The Imagine XLS has been built with oversized tank capacities, an extra-large 2" fresh water drain valve, a ducted A/C system, a power tongue jack, and a heated and enclosed underbelly with suspended tanks. There is a designated heat duct to the subfloor and a residential ductless heating system throughout. For outdoor adventures, the electric awning with LED lights will enable you to stay protected, and the exterior speakers make any time outside a party. You will also love the XLS Solar Package that comes with a 165W roof mounted solar panel, a 40 Amp charge controller, a 12V 10 cu. ft. refrigerator, and roof mounted quick connect plugs!

Options:

Aluminum Entry Steps * 180W Roof Mounted Solar Panel * Roof Mounted Quick Connect Plugs * 40 AMP Charge Controller * 12V 10 Cu. Ft. Refrigerator * Deep Seated Stainless Steel Sink * Residential Pull-Down Sprayer Faucet * Universal Docking Station * On Demand Tankless Water Heater * Black Tank Flush * Spare Tire and Carrier * 6' Coiled Break Away Cable * 2” Accessory Hitch * Sewer Hose Carrier * Dual LP Tank Monitors * Adjustable Power Awning w/ LED Lights * LED Interior Lighting * 30 AMP Service * High Definition LED Television * LED Motion Sensor Entry Lighting * Detachable Power Cord * Ducted Main AC * Power Tongue Jack * Compass Connect * Tire Linc TPMS Prep * Exterior Cable Hookup * Wireless Pop-Up Charger w/Dual USB Ports * High Capacity Furnace * Heated and Enclosed Underbelly with Suspended Tanks * Heated and Enclosed Dump Valves

Features

Standard Features (2024)

Exterior

80% Tint Radius Safety Glass Windows
20# LP Bottles (2) w/Level Gauges
28" Radius Entry Door
Extra Large 2” Fresh Water Drain Valve
Adjustable Power Awning w/ LED Lights
Power Tongue Jack
Aluminum Entry Steps
Spare Tire & Carrier
6' Coiled Break Away Cable
Front Rock Guard
Tuff-Ply Pass Thru Flooring
Sewer Hose Carrier

Construction

Gel Coated Fiberglass Exterior
One-Piece Roof Membrane with Limited Lifetime Warranty
Easy Access Low Point Drain Valves
Friction Hinge Entry Door
Magnetic Storage Door Catches
Laminated Aluminum Framed Rear Wall (R-7)
Laminated Aluminum Framed Side Walls (R-7)
Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
Laminated Aluminum Framed Main Floor (R-30)
5" Radius Wood Framed Roof (R-40)
Heated & Enclosed Underbelly w/ Suspended Tanks
Double Insulated Roof & Front Wall
Heated & Enclosed Dump Valves
High Density Roof Insulation w/ Attic Vent
Moisture Barrier Floor Enclosure

Running Gear

Tire Linc TPMS Prep
Aluminum Rims
ABS

Frame & Chassis

2" Accessory Hitch Receiver

Interior

Solid Drawer Fronts
Glass Cabinet Door Inserts (Select Overhead Cabinets)
Solid Core Cabinet Stiles
Pre-Drilled and Screwed Face Frames
Ball Bearing Full Extension Drawer Glides
Large Panoramic Window
Telescoping Dinette Table
LED Interior Lighting
Wireless Pop-Up Charger w/ 2 USB Outlets

Kitchen

Sink Cover
Residential Countertops
Deep Seated Stainless Steel Sink
Residential Pulldown Sprayer Faucet

Electrical

Battery Kill Switch (Pass Thru)
Monitor Panel w/ One Touch Compass Connect
180W Roof Mounted Solar Panel
Roof Mounted Quick Connect Plugs
40 Amp Charge Controller
30 Amp Service
Detachable Power Cord
Motion Sensor LED Entry Lighting

HVAC

High Capacity Furnace
Designated Heat to Subfloor
Residential (Ductless) Heating System Throughout
Ducted Main A/C

Plumbing

High-Capacity Water Pump
Oversized Tank Capacities

Bedroom

Queen Murphy Bed w/ Storage Drawers (17MKE, 22BHE)
Residential Bedspread
Master Suite with Queen Bed (22MLE, 22RBE, 23LDE, 24BSE, 24SDE, 25DBE)
Built-in Wardrobe Cubby Storage w/USB-C Charging Station and 110V Outlet

Bathroom

Residential Walk-In Shower
Skylight Over Shower
Power Vent Fan
Medicine Cabinet with Mirror

Appliance

Microwave
3-Burner Range with Oven
12V 10 Cu. Ft. Refrigerator

Electronics

Backup Camera Prep
TV and Cable Prep
High Definition LED TV
Exterior Cable Hookup

Peace of Mind Package (Mandatory)

Aluminum Entry Steps
Deep Seated Stainless Steel Sink
Residential Pull-Down Sprayer Faucet
Residential Cabinetry
Universal Docking Station
On Demand Tankless Water Heater
Black Tank Flush
Aluminum Rims
Spare Tire and Carrier
Front Rock Guard
Premium Window Treatments
6' Coiled Break Away Cable
2" Accessory Hitch
Sewer Hose Carrier
Tuff-Ply Pass Through Flooring
Dual LLP Tank Monitors

Ultimate Power Package (Mandatory)

Adjustable Power Awning w/ LED Lights
LED Interior Lighting
30 AMP Service
High Definition LED Television
LED Motion Sensor Entry Lighting
Detachable Power Cord
Ducted Main AC
Power Tongue Jack
Compass Connect
Tire Linc TPMS Prep
Exterior Cable Hookup
Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
Wireless Pop-Up Charger w/Dual USB Ports

Four-Season Protection Package (Mandatory)

High Capacity Furnace
Heated and Enclosed Underbelly with Suspended Tanks
Designated Heat Duct to Subfloor
High Density Roof Insulation with Attic Vent
Moisture Barrier Floor Enclosure
Residential Heating System Throughout (Ductless)
Double Insulated Roof and Front Cap (R-40)
Heated and Enclosed Dump Valves

XLS Solar Package (Mandatory)

180W Roof Mounted Solar Panel
Roof Mounted Quick Connect Plugs
40 Amp Charge Controller
12V 10 CU. FT. Refrigerator

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
Joe in the service department was very helpful. Despite a busy time of year he looked our trailer as we limped into Parksville during our vacation. He could have turned us away but instead helped us get on our way safely. Thank you.

Roland
Excellent Customer Service
I had a good experience shopping here our salesman Doug Green was very friendly and helpful showed us a variety of options and even stayed a bit late to make sure we had seen all the options. we decided not to buy an RV but If I did I would buy from Doug

Jay
Excellent Customer Service
Exceptional treatment from everyone, warm friendly service that went beyond my expectations. I was looking for my perfect fifth wheeler and I was treated with personal warmth and exceptional patience. What a great team. Thank you for making my dream come true!

Livvy

We are here to help, call us at
250-724-4648 or Contact Us

We are here to help!

250-724-4648
Contact Us
Request More Info

Arbutus RV & Marine Sales Ltd. is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. *Payments based on taxes plus 10% down or equivalent trade at a rate of 8.99% over 520 bi-weekly payments. Total price excluding Doc fee of $495 and taxes, includes freight. O.A.C. DLR#'s - Sidney: 30334; Mill Bay: 8996; Nanaimo: 9820; Parksville: 41840; Port Alberni: 30389; Courtenay: 26694

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Grand Design Imagine XLS 17MKE

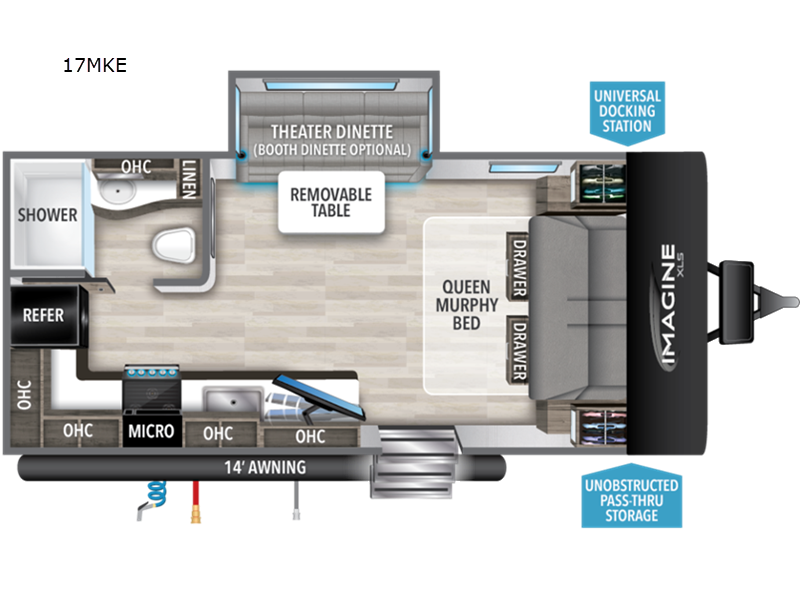

17MKE Floorplan
